Rackmounte Computer



TC920 series is rack mount / desktop computer designed for wide range high-density applications such as: data centers, server applications, industrial computer, home/office desktop usage and vehicle PCs.

Specifications:

DC power supply

CPU: Xeon E3-1260(5), i7, i5, i3, dual core / Up to 16G DDR3-1600

Safety standards: CSA/UL 60950-1, EN 60950-1, IEC 60950-1

Intel DQ77KB / IntelDH61AGL

Options:

Raid 0, 1, 5 and 10 6Gb/s SATA

HDMI + Display Port / 4xUSB3 / 2 x Giagabit Ethernet

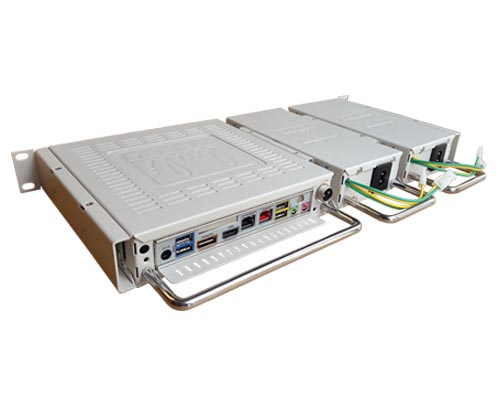

Rack mount - 1U / Desktop / wall mount / direct use in car (12V)

Wide range input dc voltage: 10.5 – 21V DC, car battery, direct solar panel

Single power / Battery inside (1 ~ 4hour) / dual Power (redundant)

2 independent PC in only one-unit rack mount

Extra internal mini PCI express Ethernet 1G

MSATA HDD

Coming soon options:

Watch dog timer

Hot plug HDD / SSD

Built in 7” LCD

Internal wifi

Extra 14 port USB bank with all 6A current

Applications:

Box PC / wall mount / rack mount

Esxi 6.5 (DQ77kb, i7 3770, 16G DDR3-1600, 2 x SSD raid strip or mirror, 2 x ethernet, rack mount - 1U, dual power supply)
